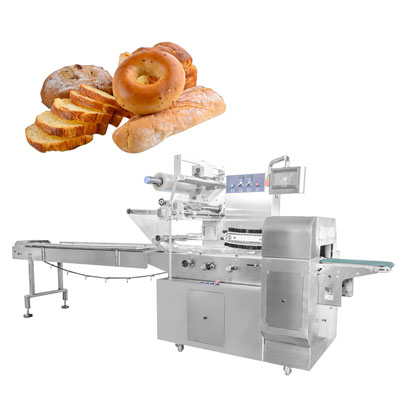

Bread Horizontal Flow Wrap Machine

    Application:

    HFFS Horizontal Flow Wrap Packing Machine is suitable for pack various kinds of regular objects into pillow bag or gusseted bag. The object like Food, Vegetables, Fruits, Medicine, Daily Appliances, Hotel Supplies, Metals, Industrial Parts, Boxes, Trays, Toys and etc.

    Kindly Reminder:

    We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

    Before the packaging solution, please kindly share with us below information:

    1. product name

    2. product length, width and height

    3. package requirements


Horizontal Flow Wrap Machines are versatile packaging systems that excel in wrapping products with a horizontal flow motion. Whether you need to package food items, pharmaceuticals, household goods, or other products, flow wrap machines are engineered to meet your specific packaging requirements.


Horizontal flow wrap machine features:

1. Three servo motors control, flexible bag length cutting, operator needn't to adjust the  unloading working, saving time and saving films.

2. Human-machine operation, convenient and quick parameter setting.

3. Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.

5. Separate PID control to temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7. Simple driving system, reliable working, convenient maintenance.

8. All the controls are achieved by software, convenient for function adjusting and upgrading.


Horizontal flow wrap machine application:

1. Food: bread, biscuits, cookies, tortillas, moon cake, several sausage in a bag, instant noodles, beef jerky, egg roll, etc.

2. Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers, etc.

3. Hardwares: hinge, stainless steel pipe, bearings , screw, nuts and washer, etc

4. Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.

5. Stationary: pencil, eraser, notebook, paper card, adhensive tape, etc.

6. Electric Products: battery, usb cable, earphone, user manual and accessories in one set.

7. Medical: face mask, glove, gauze, capsule, disposable syringe, etc.

8. Daily use: plastic knife, fork, plate, sponge cloth, stainless steel scourer, scrubber, glass, etc.

Flow wrap machine specification:

ModelVT-110VT-160VT-210VT-280VT-330
Film Width

Max.240mm

Max.340mmMax.440mmMax.580mmMax.680mm
Bag Length

65-400mm

60-400mm95-500mm150-550mm150-550mm
Bag Width30-110mm30-160mm50-210mm60-280mm80-330mm
Products HighMax.55mmMax.55mmMax.85mmMax.110mmMax.110mm
Film Roll DiameterMax.380mmMax.380mmMax.380mmMax.380mmMax.380mm
Packing Speed40-300bag/min40-200bag/min40-150bag/min20-120bag/min20-120bag/min
Power

220V 50/60Hz

2.6KW

220V 50/60Hz

2.6KW

220V 50/60Hz

3KW

220V 50/60Hz

3.5KW

220V 50/60Hz

3.5KW

Machine Size

(L*W*H)mm

3600*670*1470

3600*745*14703820*820*14704000*960*15504000*1000*1550
Machine WeightAbout 500kgAbout 580kgAbout 650kgAbout 700kgAbout 750kg


Optional Devices:

1.Lateral feed device

2.Straight feed device

3.Belt material conveyor

4.End sealing auxiliary conveyor

5.Auxiliary material feeding device

6.Materia cut prevent device

7.Perforating device

8.Angle folding device

9.Date Printer

10.Labelling machine


Bread Horizontal Flow Wrap Machine Bread Horizontal Flow Wrap Machine

Bread Horizontal Flow Wrap Machine

Kindly Reminder:

Welcome our old and new customers to visit Coretamp factory and make the consultation.

We will provide professional packaging solutions for you!
