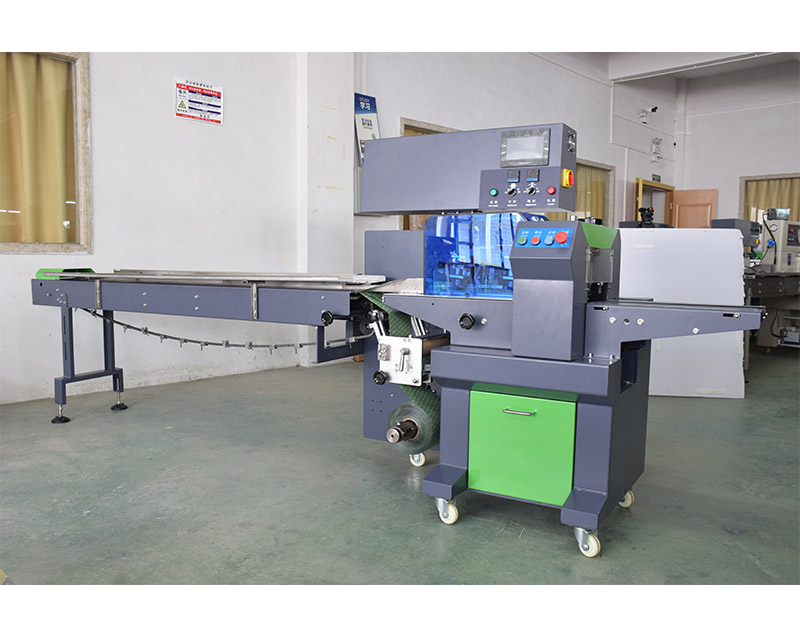

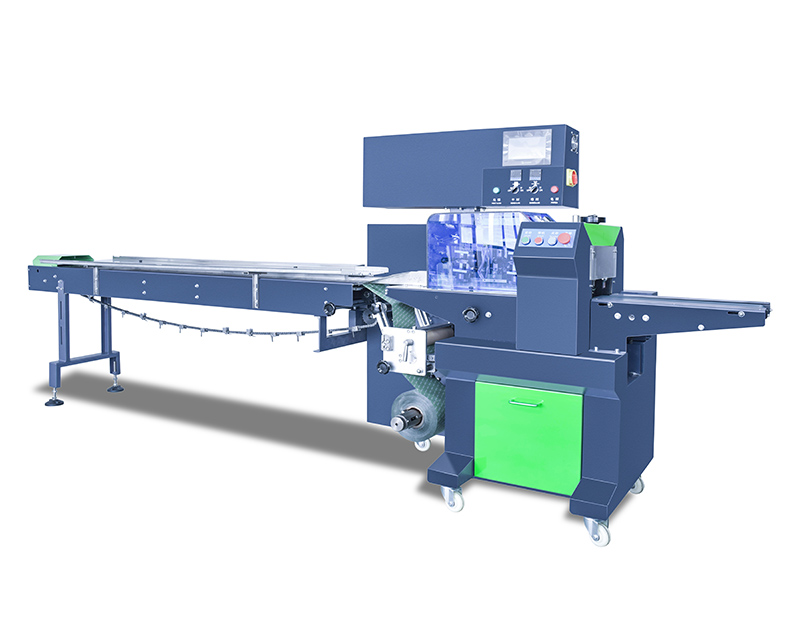

Horizontal Flow Packing Machine ( Upgraded Version )

    Application:

    Horizontal Flow Packing Machine ( Upgraded Version ) is suitable for packaging soft, strip and unorganized objects into pillow bag or gusseted bag. Like towels, tissues, noodles, egg rolls, sausages, ice-lollies, soft candies, fresh fruits, fresh vegetable without tray etc.

    Kindly Reminder:

    We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

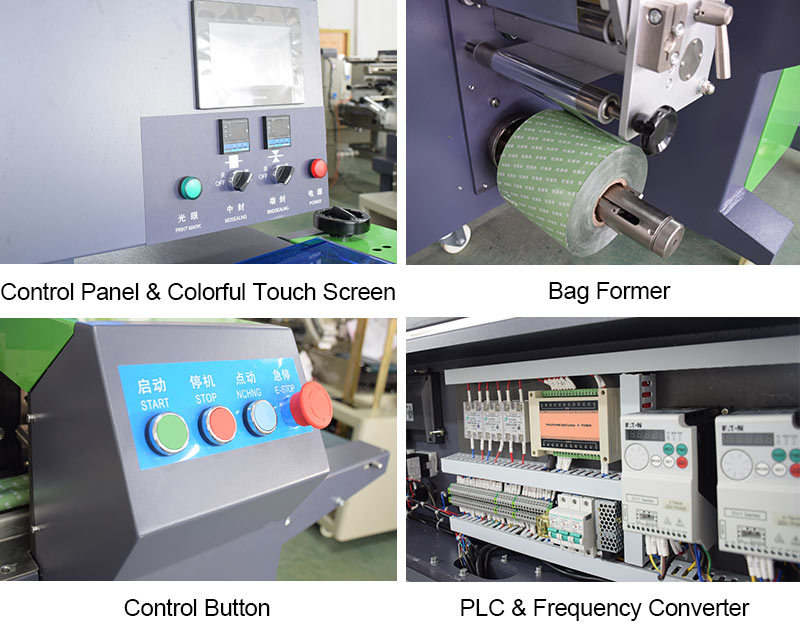

* For Stable Performance: Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.

* For Easy Operation: Touch screen monitor, independant temperature PID controller.

* For Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, date printer, etc.


Application:

Suitable for soft,several product one bag,viscous product. such as leaf vegetable, noodle, disposable tableware (Plastic Fork Spoon Tissue), chopsticks, toothbrushes & toothpaste, candles, agarbatti, incense sticks, gloves, multi straws, colorful crayons, pen.


Specification:

ModelVT-110XVT-160XVT-210XVT-280XKT-330XVT-380X
Film Width

Max.240mm

Max.340mm

Max.440mmMax.580mmMax.680mmMax.780mm
Bag Length

60-400mm

60-400mm

95-500mm150-550mm150-550mm160-600mm
Bag Width30-110mm30-160mm50-210mm60-280mm80-330mm100-380mm
Products HighMax.55mmMax.55mmMax.85mmMax.110mmMax.110mmMax.130mm
Film Roll DiameterMax.380mmMax.380mmMax.380mmMax.380mmMax.380mmMax.380mm
Packing Speed40-330bag/min40-200bag/min40-150bag/min20-120bag/min20-120bag/min20-100bag/min
Power

220V 50/60Hz

2.6KW

220V 50/60Hz

2.6KW

220V 50/60Hz

3KW

220V 50/60Hz

3.5KW

220V 50/60Hz

3.5KW

220V 50/60Hz

4.5KW

Machine Size

(L*W*H)mm

3800*710*1450

3900*785*14503900*860*14504000*950*15004000*1000*15004000*1100*1500
Machine WeightAbout 500kgAbout 550kgAbout 650kgAbout 700kgAbout 750kgAbout 800kg


Optional Devices:

1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor,

4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device,

7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine
