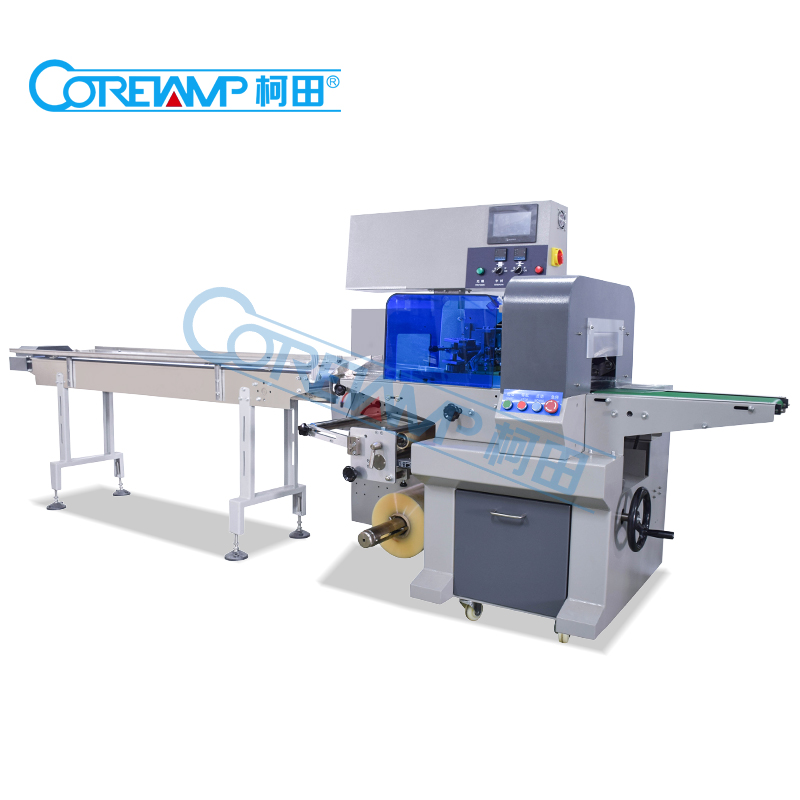

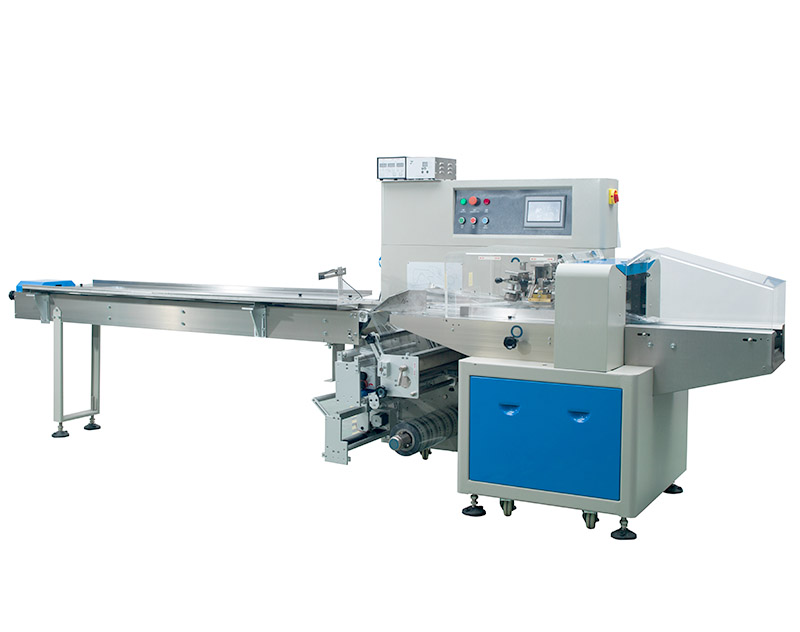

Horizontal Flow Wrap Machine KT-250X/KT-350X/KT-450X/KT-600X/KT-700X

    Application:

    HFFS Horizontal Flow Wrap Packing Machine is suitable for packaging soft, strip and unorganized objects into pillow bag or gusseted bag. Like towels, tissues, noodles, egg rolls, sausages, ice-lollies, soft candies, fresh fruits, fresh vegetable without tray etc.

    Kindly Reminder:

    We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

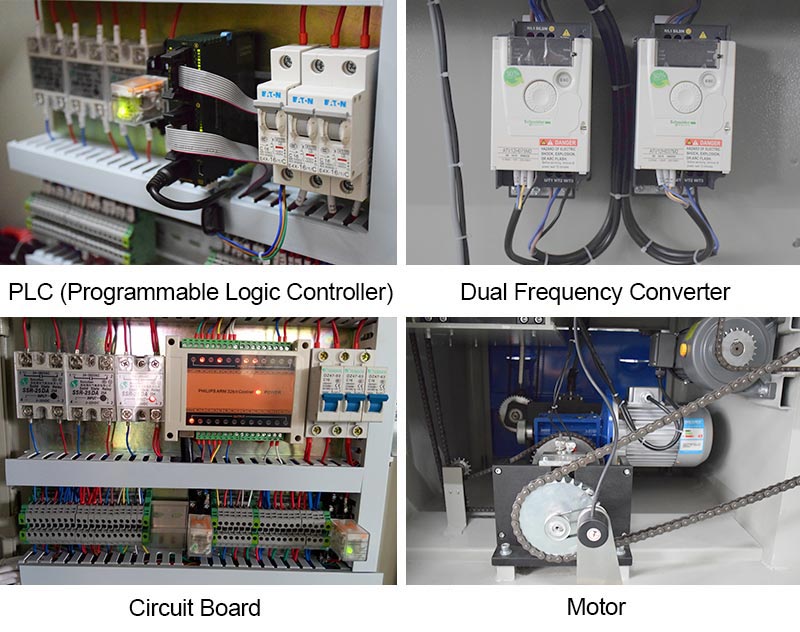

·Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.

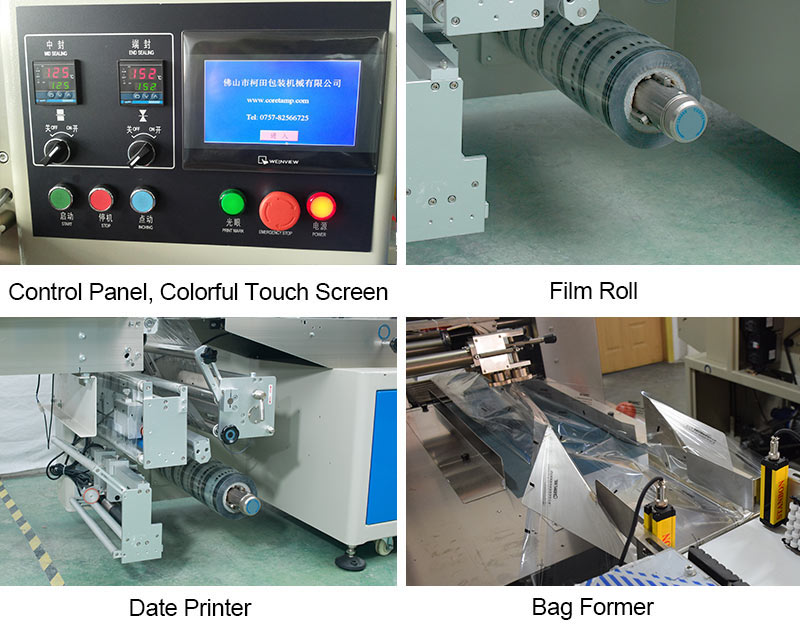

·Interface features are easy and quick setting and operating.

·Self diagnosis failure function, clear failure display.

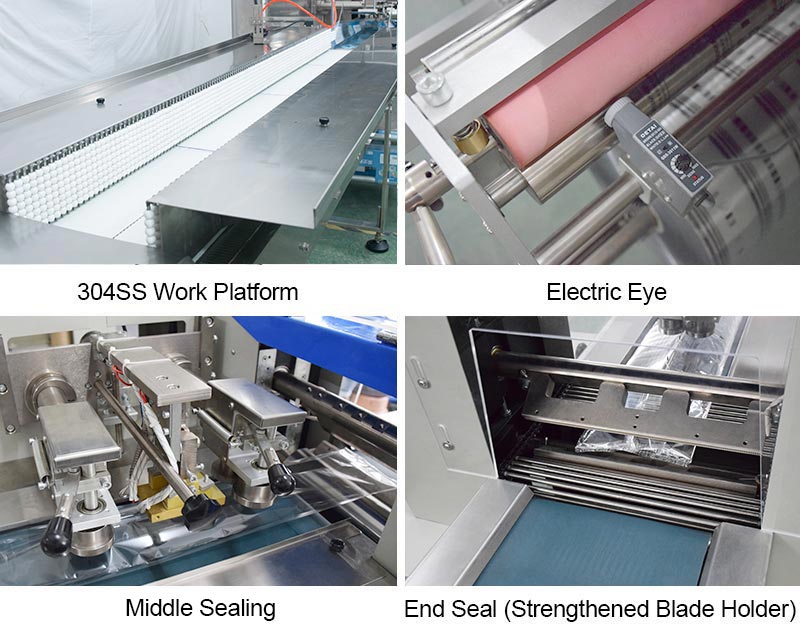

·High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

·Temperature independent PID control, more suitable for packing different materials.

·Positioned stop function,without sticking knife or wasting film.

·Simple driving system,reliable working,convenient maintenance.

·All control is realized through software,easy for function adjusting and technical urgrade.


Application:

Suitable for soft,several product one bag,viscous product. such as leaf vegetable, noodle, disposable tableware (Plastic Fork Spoon Tissue), chopsticks, toothbrushes & toothpaste, candles, agarbatti, incense sticks, gloves, multi straws, colorful crayons, pen.


Specification:

ModelKT-250XKT-350XKT-450XKT-600XKT-700X
Film WidthMax.250mmMax.350mmMax.450mmMax.600mmMax.700mm
Bag Length65-280mm65-330mm150-450mm160-500mm180-600mm
Bag Width30-110mm50-160mm50-180mm100-280mm100-330mm
Product HeightMax.45mmMax.65mmMax.80mmMax.110mmMax.110mm
Packing Speed40-230bag/min40-230bag/min40-150bag/min20-150bag/min20-130bag/min
Power

220V 50/60Hz

2.4KW

220V 50/60Hz

2.8KW

220v 50/60Hz

2.8KW

220v 50/60Hz

2.8KW

220V 50/60Hz

2.8KW

Machine Size

(L*W*H)mm

3920*670*13204020*720*13204150*820*14504300*920*14604380*980*1480
Machine WeightAbout 500kgAbout 550kgAbout 650kgAbout 680kgAbout 720kg


Optional Devices:

1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor,

4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device

7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine
