Horizontal Flow Wrap Packaging Machine VT-110/160/210/280/330

    Application:

    Horizontal Flow Wrapper Packaging Machine is suitable for packing various kinds of large size regular objects into pillow bag or gusseted bag, like Food, Vegetables and Fruits, Hardwares, Hotel Supplies, Stationary, Electric Products, Medical, Daily use and etc.

    Kindly Reminder:

    Before detailed offer, please share with us more product details, such as:

    1. product name

    2. product dimensions: length , width and height

    3. production capacity

    4. or other details you required


Features:

1. Three servo motors control, flexible bag length cutting, operator needn't to adjust the  unloading working, saving time and saving films.

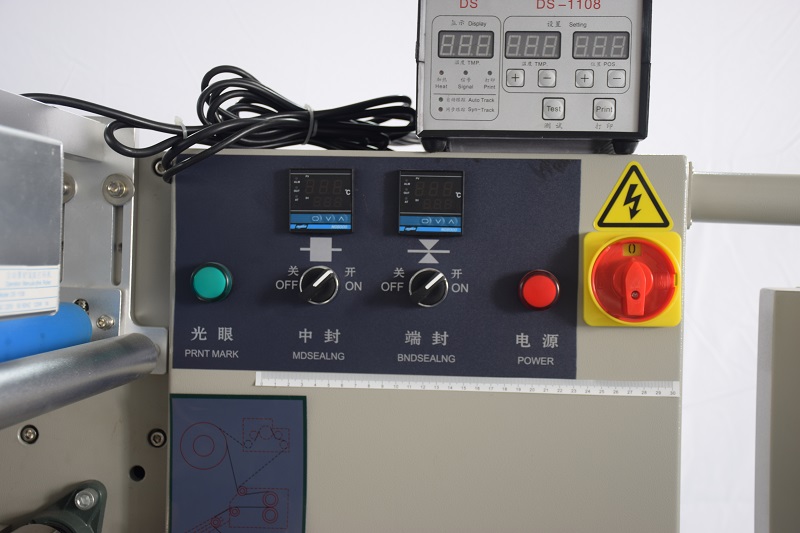

2. Human-machine operation, convenient and quick parameter setting.

3. Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.

5. Separate PID control to temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7. Simple driving system, reliable working, convenient maintenance.

8. All the controls are achieved by software, convenient for function adjusting and upgrading.


Application:

Food: cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc.

Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers, etc.

Hardwares: hinge, stainless steel pipe, bearings , screw, nuts and washer, etc

Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.

Stationary: pencil, eraser, notebook, paper card, adhensive tape, etc.

Electric Products: battery, usb cable, earphone, user manual and accessories in one set.

Medical: face mask, glove, gauze, capsule, disposable syringe, etc.

Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, gift, cups, bottles, napkin, baby diaper, etc.


Specification:

Model

VT-110

VT-160

VT-210

VT-280

VT-330

Film Width

Max.240mm

Max.340mm

Max.440mm

Max.580mm

Max.680mm

Bag Length

65-400mm

60-400mm

95-500mm

150-550mm

150-550mm

Bag Width

30-110mm

30-160mm

50-210mm

60-280mm

80-330mm

Products High

Max.55mm

Max.55mm

Max.85mm

Max.110mm

Max.110mm

Film Roll Diameter

Max.380mm

Max.380mm

Max.380mm

Max.380mm

Max.380mm

Packing Speed

40-300bag/min

40-200bag/min

40-150bag/min

20-120bag/min

20-120bag/min

Power

220V 50/60Hz

2.6KW

220V 50/60Hz

2.6KW

220V 50/60Hz

3KW

220V 50/60Hz

3.5KW

220V 50/60Hz

3.5KW

Machine Size

(L*W*H)mm

3600*670*1470

3600*745*1470

3820*820*1470

4000*960*1550

4000*1000*1550

Machine Weight

About 500kg

About 580kg

About 650kg

About 700kg

About 750kg

Optional Devices:

1. Lateral feed device,

2. Straight feed device,

3. Belt material conveyor,

4. End sealing auxiliary conveyor,

5. Auxiliary material feeding device,

6. Materia cut prevent device,

7. Perforating device,

8. Angle folding device,

9. Date Printer,

10. Labelling machine
