Application:

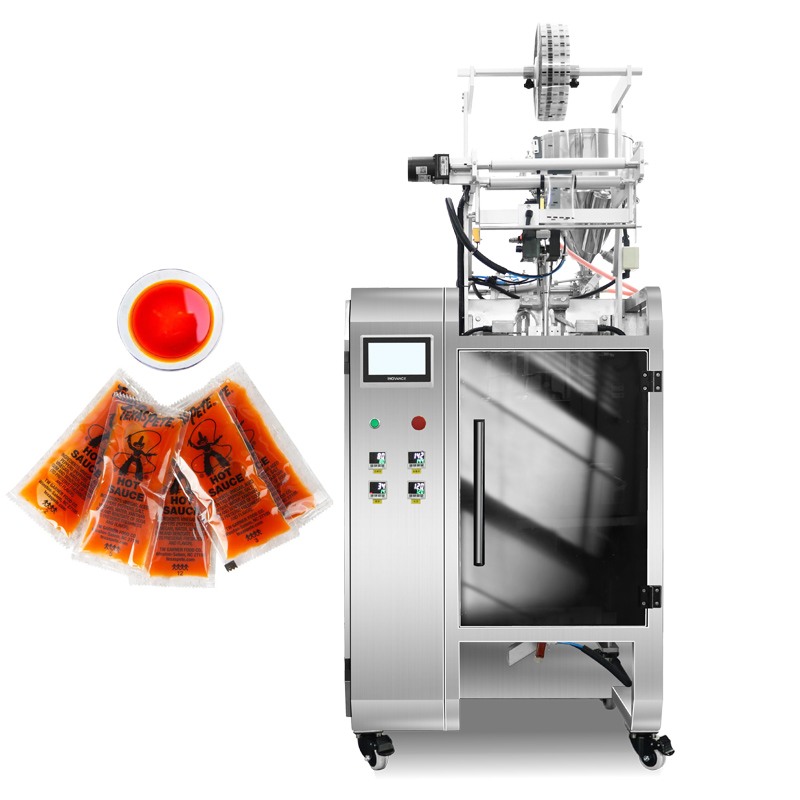

Automatic liquid pouch / sachet packing machine is suitable for packing liquid material,such as water,ketchup,milk,honey,oil,sauce,ice candy,fruit juice,tomato paste,etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

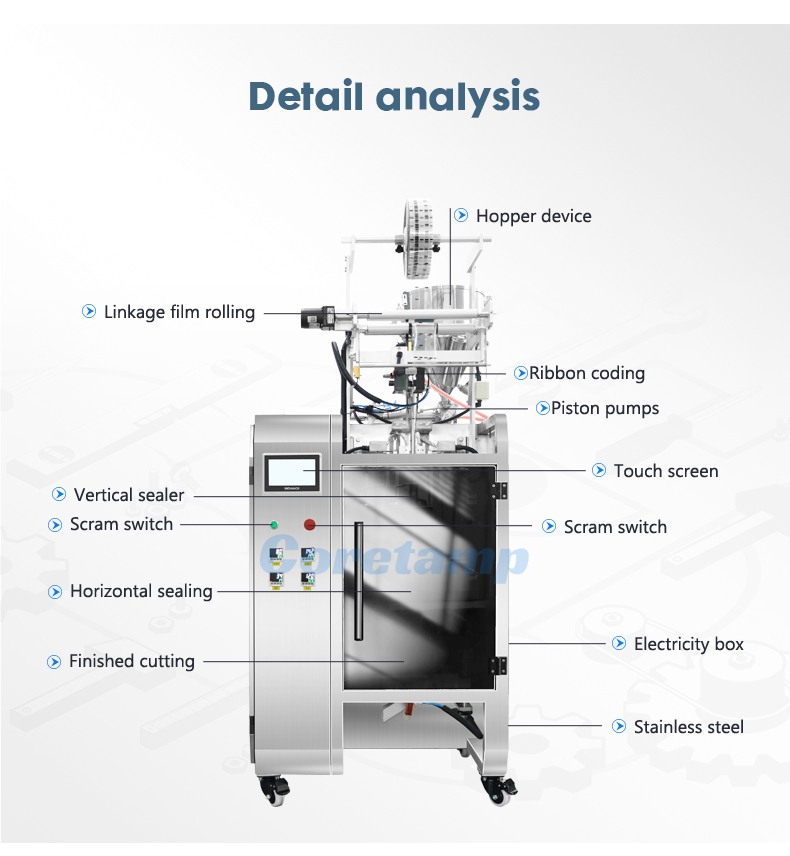

Standard Features:
* Computer PLC control and automatic alarming function.
* English or Chinese screen display, easy operation.
* High sensitivity photoelectric eye color tracing,more accuracy.

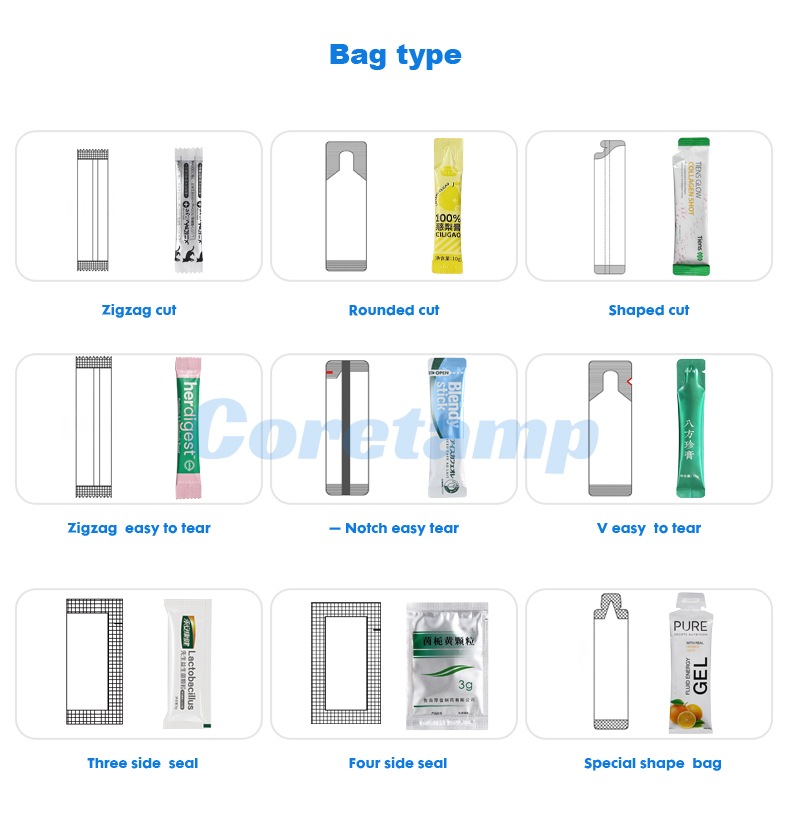

* Bag type can be customised to 3 sides sealing, 4 sides sealing, pillow bag ,and long stick bag.
* Famous brand components, ensure the quality and durability of machine.
* Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
* Ribbon code printer, link-bag device is option.
* Multipurpose packaging, suitable for various packaging of different product.
Specification:
| Model | ZV-320L | ZV-380L |
| Film Width | 120-320mm | 180-380mm |
| Bag Length | 50-200mm | 60-280mm |
| Bag Width | 10-150mm | 60-180mm |
| Range of Measurement | 50-500ml | 50-750ml |
| Film Roll Diameter | Max.300mm | Max.320mm |
| Packaging Rate | 35-70bag/min | 35-70bag/min |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine Size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine Quality | About 300kg | About 450kg |
Optional device | 1.Date Printing,2.Hole Punching Device, 3.Linking bag device,4.Air-filling Device,5.Tear Notch Device | |

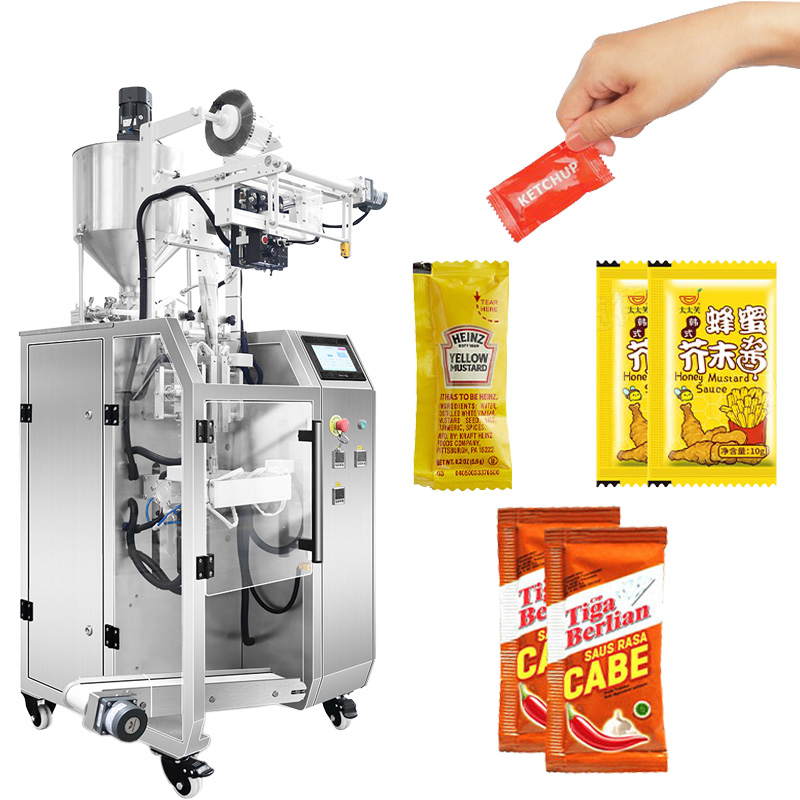

Pillow bag liquid packing machine
Liquid stick packing machine
3 side seal bag liquid packing machine
4 side seal bag liquid packing machine
