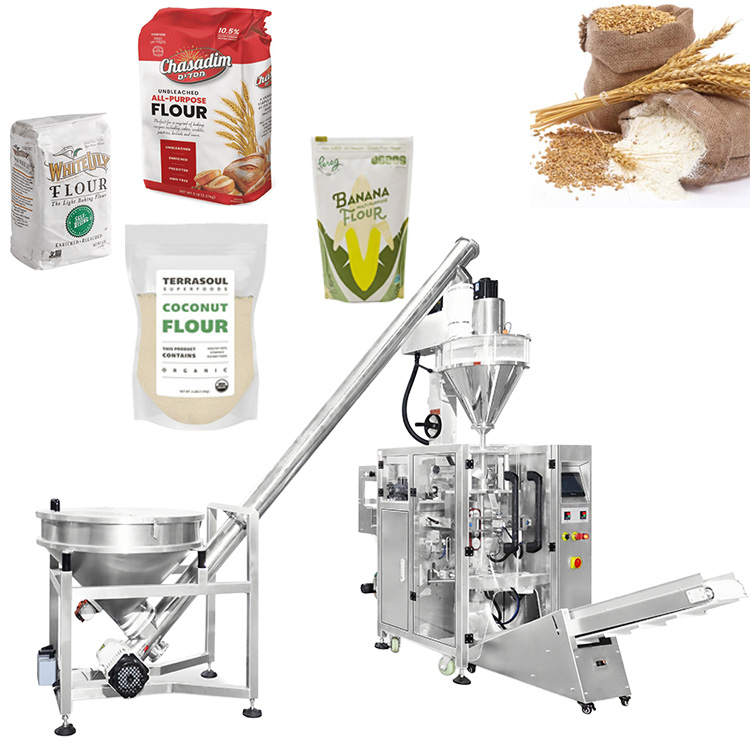

1kg~5kg Automatic Powder Bag Packaging Machine ZV-420D/520D/720D

Application:

VFFS Vertical Full Automatic powder packaging machine is suitable for packing fine dry powder materials,such as milk powder,spices powder,coffee powder,corn flour,laundry powder,coconut powder,fruit powder,collagen protein powder,cocoa powder,chilli powder,etc.

It integrates metering,bagging,packing,sealing,date printing and counting into one.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Get Price Send Email

Main Performance：

*High precision digital weighing sensors;

*PLC control system, stable and reliable;

*7 inch colorful touch screen;

*Material contact parts (storage hopper, hopper, vibration plate, weighing hopper, etc.) are to realize fast disassembly, easy to clean;

*Easy to clean and maintance.

Combined parts:

1. Auger Lifter (Lifting and Feeding), 2. Auger Filler (Weighing), 3. VFFS Packing Machine, 4. Products Conveyor

Specification:

Model	ZV-420D	ZV-520D	ZV-720D
Sealing Type	Pillow Bag (Back Sealing), Guessted Bag(optional), Quad Seal Side Pouch(optional)
Feeding System	Auger Filler / Screw Filler
Packing Film	Composite material:OPP/CPP,OPP/CE,MST/PE/PET/PE
Cutting	Tooth Cut / Flat Cut(optional)
Horizontal Sealing	Netted Line / Straight Line(optional)
Film Width	Max.420mm	Max.520mm	Max.720mm
Bag Length	80-300mm	80-350mm	100-500mm
Bag Width	60-200mm	100-250mm	180-350mm
Roll Diameter	Max.320mm	Max.320MM	Max.320MM
Measuring Range	150-1500ml	2000ml	4000ml
Packaging Speed	5-60bag/min	5-60bag/min	5-55bag/min
Power	220V 50/60Hz 2KW	220V 50/60Hz 3KW	220V 50/60Hz 3KW
Machine Size (LWH)	121710151343mm	148810801490mm	178013502050mm
Machine Weight	About 650kg	About 680kg	About 750kg

Automatic Powder Bag Packaging Machine ZV-420D/520D/720D

Automatic powder filling packing machine with pillow bag

Automatic powder packing machine with Quad seal bag

3 sides seal bag powder packing machine

4 sides seal bag powder packing machine
