Application:

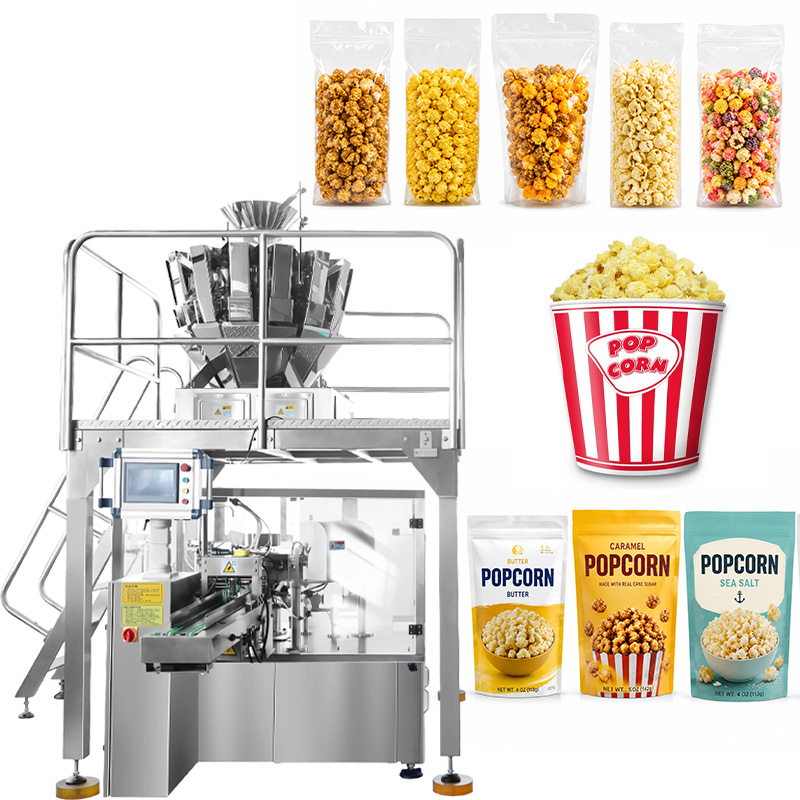

Vertical Rotary Stand Up Pouch Doypack Packing Machine with Multihead Weigher can be suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc. Different kinds of product with stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc,
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Features:
1. Wide range of pouches: all kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).
2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only needs 10 minutes to suitable for different pouches.
4. Frequency control: speed can be adjusted by frequency conversion within the range.
5. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
6. Machine alarm and stop when the inadequate air pressure.
7. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
8. Imported engineering plastic bearings, no need to oil, no contamination.
9. Oil-free vacuum pump, avoid the pollution of the production environmental.
Kinds of Premade Pouches:
Stand up pouch, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc.
Specification:
| Model | ZV-8200 / ZV-8250 |
| Kinds of Premade Pouches | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| Size | W：70-200mm / 100-250mm |
| Filling range | 10-1000g / 20-2500g |
| Packing speed | 40-60bag/min（speed is determined by the product filling quantity） |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |
| Main standard parts | 1.Code printer 2.PLC control system 3.Bag opening device 4.Vibration device 5.Cylinder 6.Electromagnetic valve 7.Temperature controller 8.Vacuum pump 9.Inverter 10.Output system |
