Application:
VFFS Vertical Automatic Auger Filling Packing Machine is suitable for packing dry powder materials,such as milk powder,spices powder,coffee powder,corn flour,laundry powder,coconut powder,fruit powder,collagen protein powder,cocoa powder,chilli powder,etc.
It integrates metering,bagging,packing,sealing,date printing and counting into one.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Main Performance：
*High precision digital weighing sensors;
*PLC control system, stable and reliable;
*7 inch colorful touch screen;
*Material contact parts (storage hopper, hopper, vibration plate, weighing hopper, etc.) are to realize fast disassembly, easy to clean;
*Easy to clean and maintance.

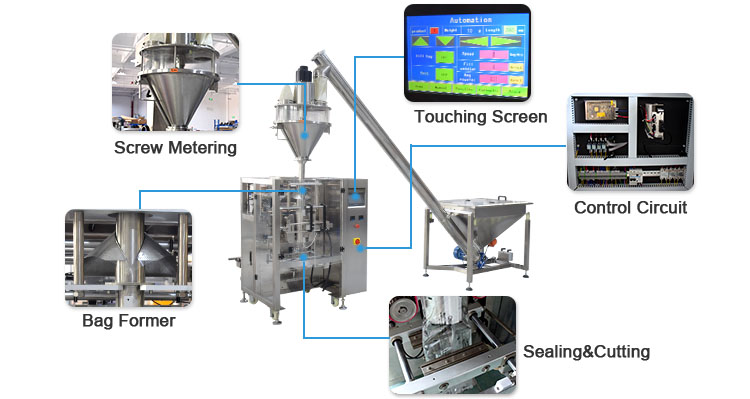

Combined parts:

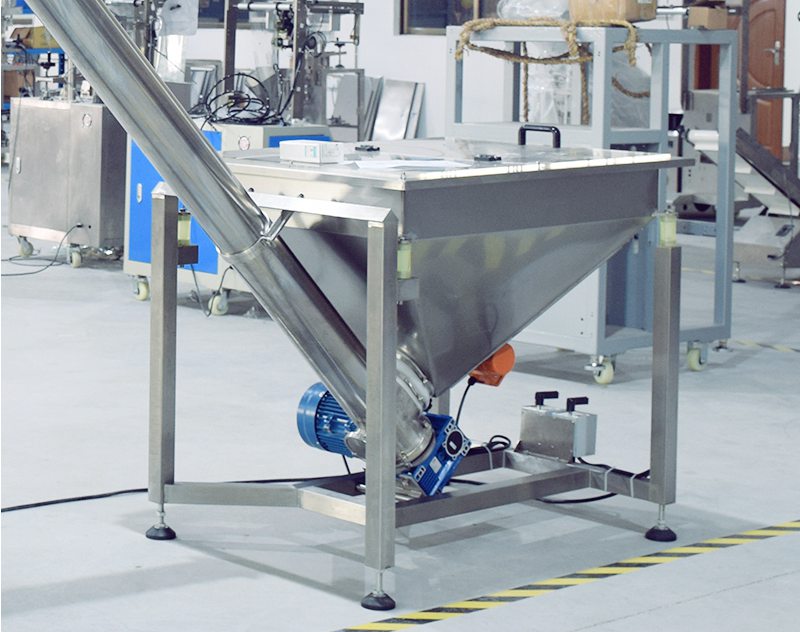

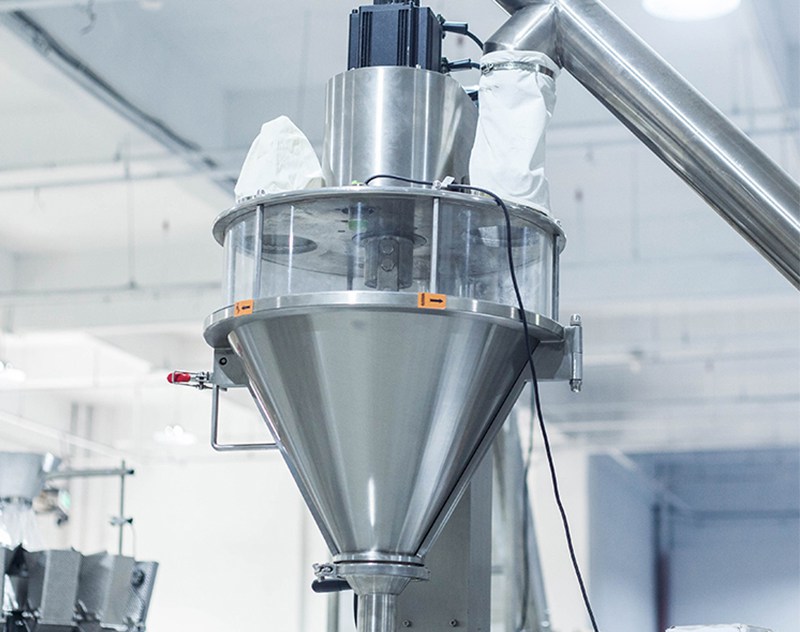

1.ZV series main frame, 2.Screw metering machine, 3.Screw infeed conveyor, 4.Products conveyor
Specification:
Model | ZV-420D | ZV-520D | ZV-720D |
Sealing Type | Pillow Bag (Back Sealing), Guessted Bag(optional), Quad Seal Side Pouch(optional) | ||
Feeding System | Auger Filler / Screw Filler | ||
Packing Film | Composite material:OPP/CPP,OPP/CE,MST/PE/PET/PE | ||
Cutting | Tooth Cut / Flat Cut(optional) | ||
Horizontal Sealing | Netted Line / Straight Line(optional) | ||
Film Width | Max.420mm | Max.520mm | Max.720mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm |
Roll Diameter | Max.320mm | Max.320MM | Max.320MM |
| Measuring Range | 150-1500ml | 2000ml | 4000ml |
Packaging Speed | 5-60bag/min | 5-60bag/min | 5-55bag/min |
Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
Machine Size (L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm |
Machine Weight | About 650kg | About 680kg | About 750kg |
Automatic powder filling packing machine with pillow bag
Automatic powder packing machine with Quad seal bag
3 sides seal bag powder packing machine
4 sides seal bag powder packing machine
