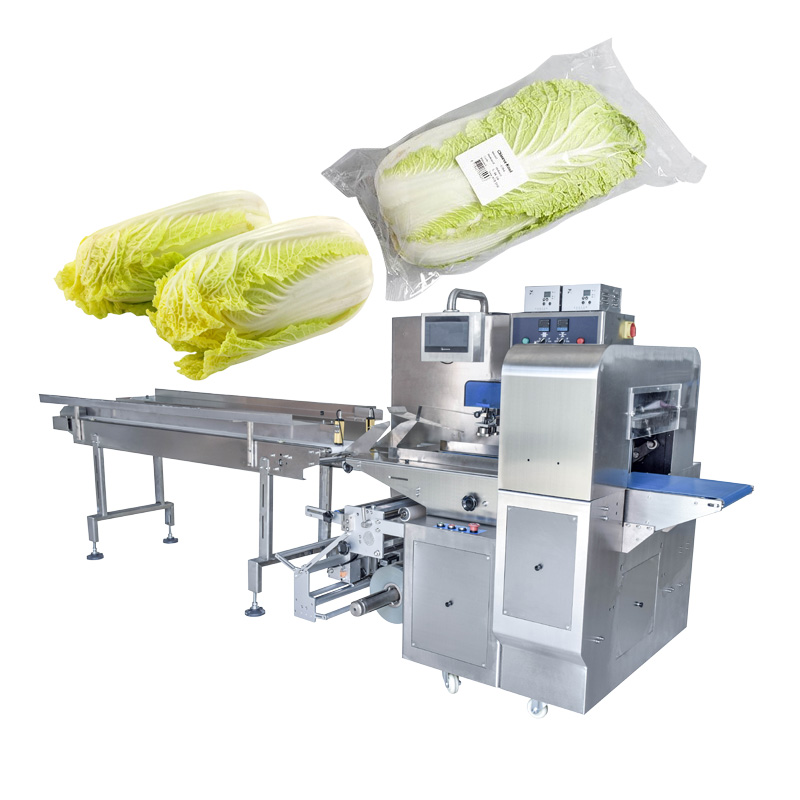

Fresh Vegetable Packing Machine

    Application:

    Fresh vegetable in bag packaging requires the machine to be fast and be selective on it's bag size limit. Coretamp Vegetable Packing Machine provides you the flexible and high efficient packaging solutions for variety of vegetable.

    Kindly Reminder:

    We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

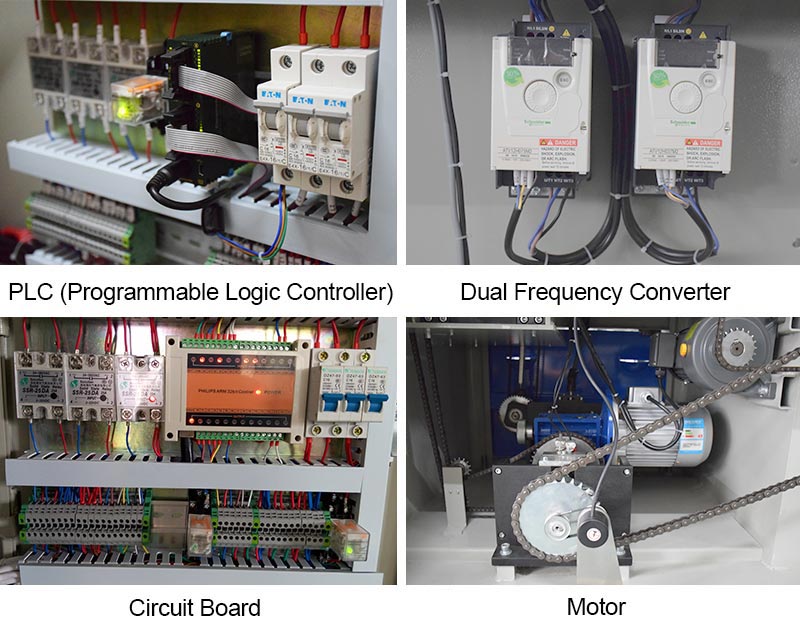

* For Stable Performance: Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.

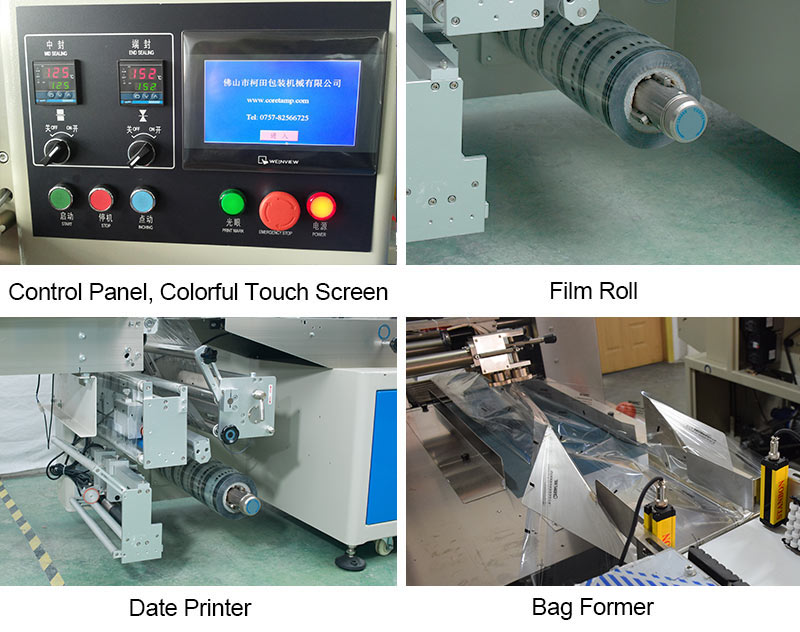

* For Easy Operation: Touch screen monitor, independant temperature PID controller,

* For Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, date printer, etc.


Application:

Suitable for variety of vegetables like romaine lettuce, potato, bell pepper, peas, green bean, cabbage, corn, mushroom, cucumber, carrot, tomato, asparagus, celery, etc.


Specification:

ModelVT-110XVT-210XVT-280XVT-380XVT-480X
Film WidthMax.250mmMax.350mmMax.450mmMax.600mmMax.700mm
Bag Length65-280mm65-330mm150-450mm160-500mm180-600mm
Bag Width30-110mm50-160mm50-180mm100-280mm100-330mm
Product HeightMax.45mmMax.65mmMax.80mmMax.110mmMax.110mm
Packing Speed40-230bag/min40-230bag/min40-150bag/min20-150bag/min20-130bag/min
Power

220V 50/60Hz

2.4KW

220V 50/60Hz

2.8KW

220v 50/60Hz

2.8KW

220v 50/60Hz

2.8KW

220V 50/60Hz

2.8KW

Machine Size

(L*W*H)mm

3920*670*13204020*720*13204150*820*14504300*920*14604380*980*1480
Machine WeightAbout 500kgAbout 550kgAbout 650kgAbout 680kgAbout 720kg


Optional Devices:

1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor,

4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device

7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine

Fresh Vegetable Packing Machine

Leaf vegetable packing machine




Carrot / cucumber packing machine




Tomato packing machine
